Hi-Station 1100

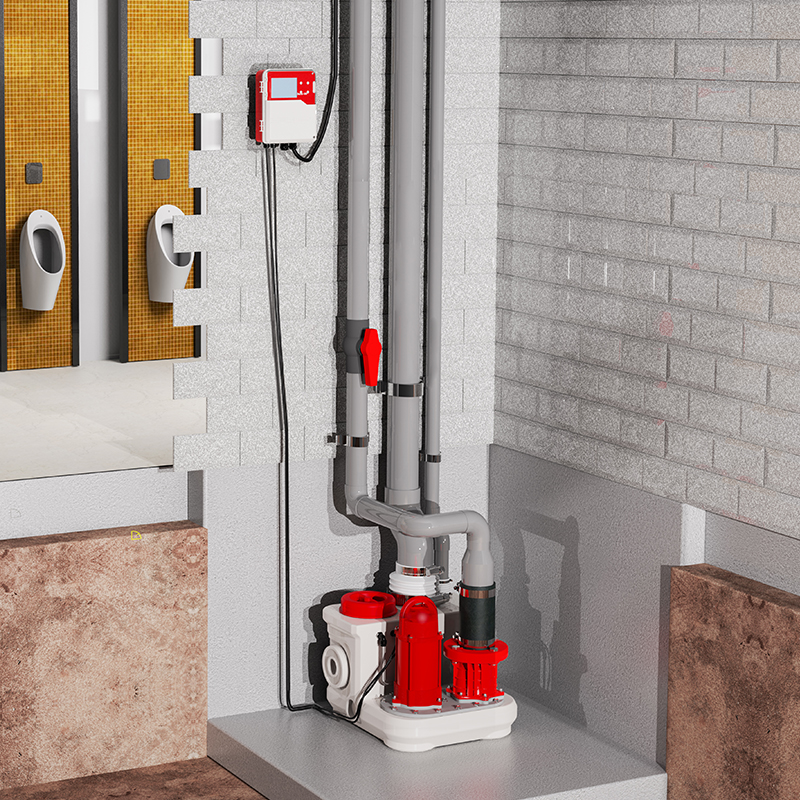

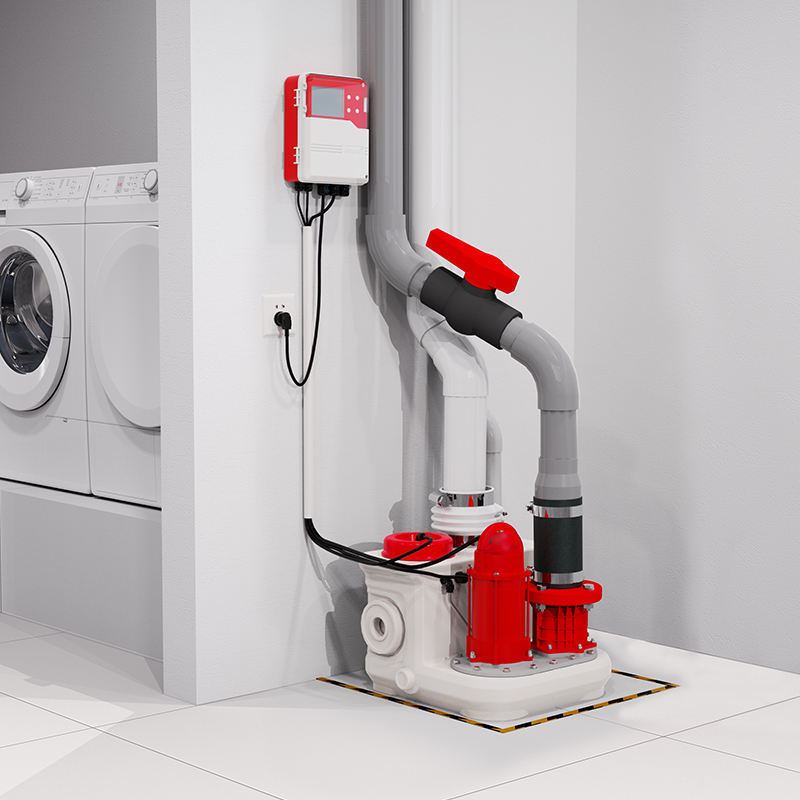

The Hi-Station 1100 model is small in size and can also reach a lift of 13 meters, but it can have a better installation position, achieving a more beautiful effect, and is convenient for maintenance.

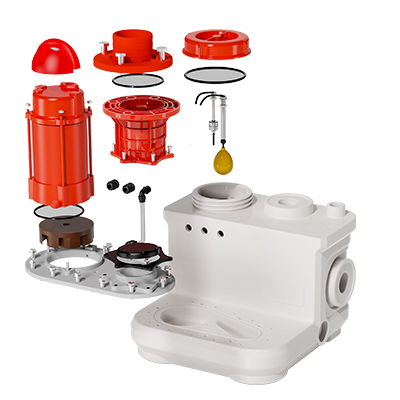

1. Heavy duty deep groove ball bearings, with both sides covered and lubricated with grease. Under rated operating conditions and maximum radial and axial loads, continuously operated bearings must have a bearing life of at least 25000 hours. It must be an excellent brand product such as NSK.
2. It is a dual group mechanical shaft seal system, with the shaft seal folding surface made of silicon carbide and the metal part made of 304 stainless steel. There is an independent large volume oil storage chamber between the mechanical shaft seals to lubricate and cool the mechanical shaft seals.
3. An overload protector (Auto cut) is installed in the motor, which automatically cuts off the power supply when the motor has abnormal temperature rise or excessive current, preventing the motor from burning out, and has an automatic reset function.
4. The pipeline connection is convenient and fast.

Hi-Station 1100 Data Sheet

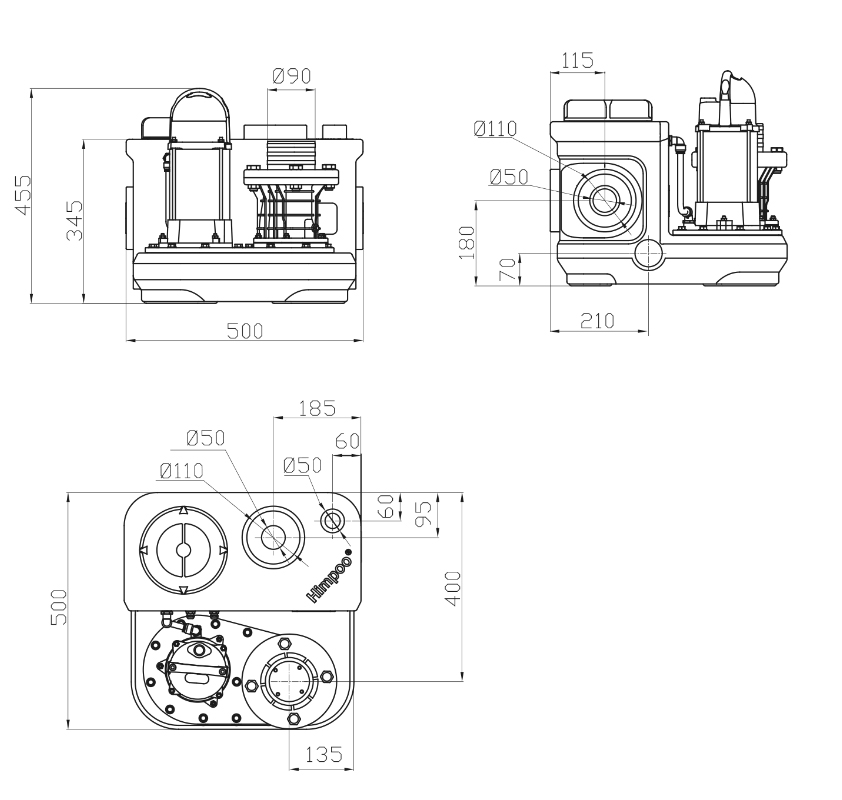

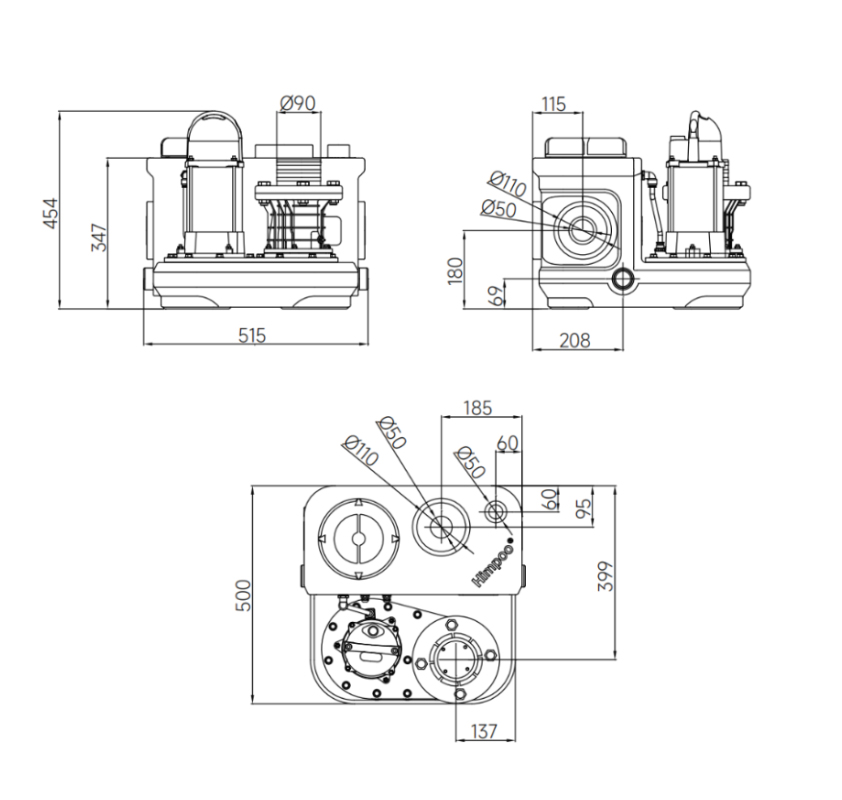

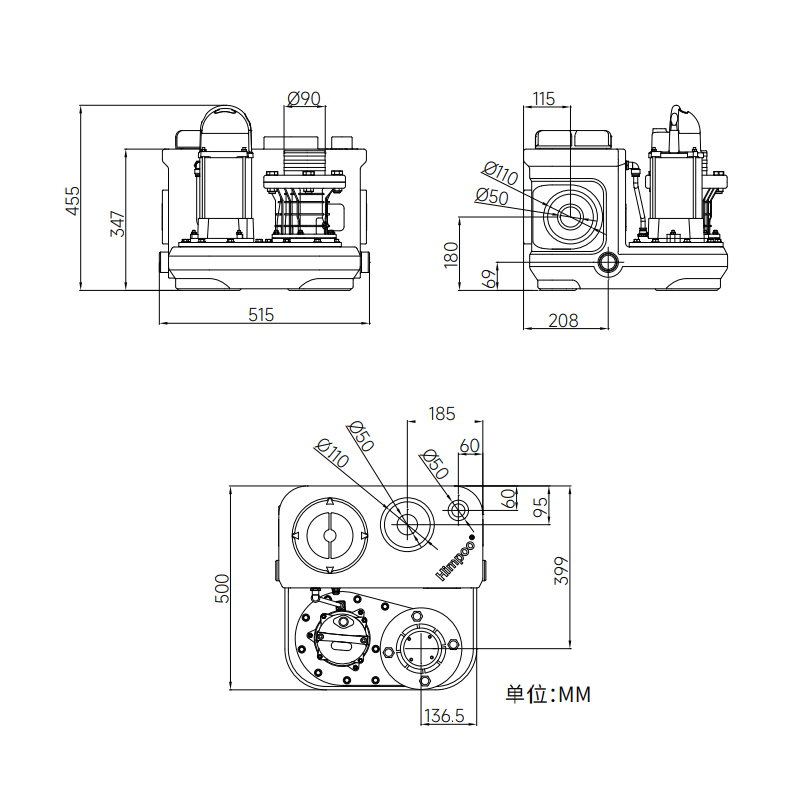

Dimensions (Height x Width x Depth)

455×500×500

Technical features of Hi-Station 1100

Water inlet: De110mm*4,De50mm*6

Outlet: De90mm

Air Vent: De50mm

Liquid Temperature: 45℃

Max Liquid temperature: 65℃/10min

Environmental temperature: 45℃

Insulation class: F-class

Maximum Particulate Matter: 40mm

Protection level: IP68

Volume of water tank: 40L

Material of header tank: HDPE

Switch system: Float switch

Dimensions: 500*500*455mm

Cable length: 5m

HP value: 5-8

Voltage: 220~240V/50Hz

Power: P1:1.1KW P2:0.75KW

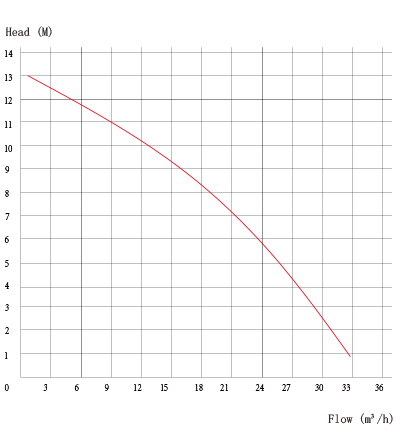

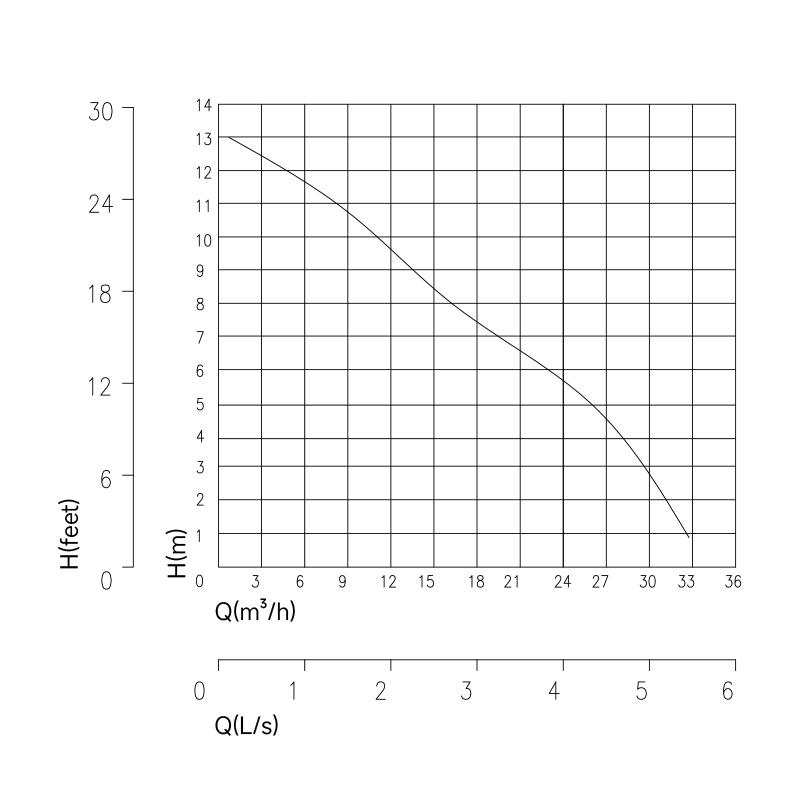

Flow rate: Qmax 33m³/h

Head: Hmax 13m

Rotating speed: 2800 r/min

Current: 5.5A

Take-off water level: 25cm

Weight:NW: 30KG
