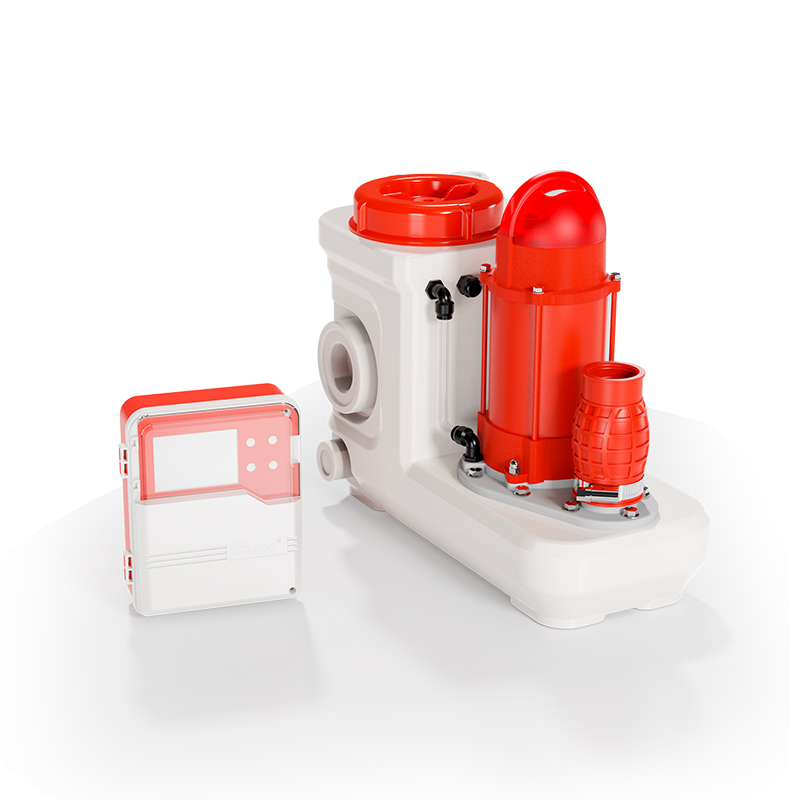

Hi-Station 750

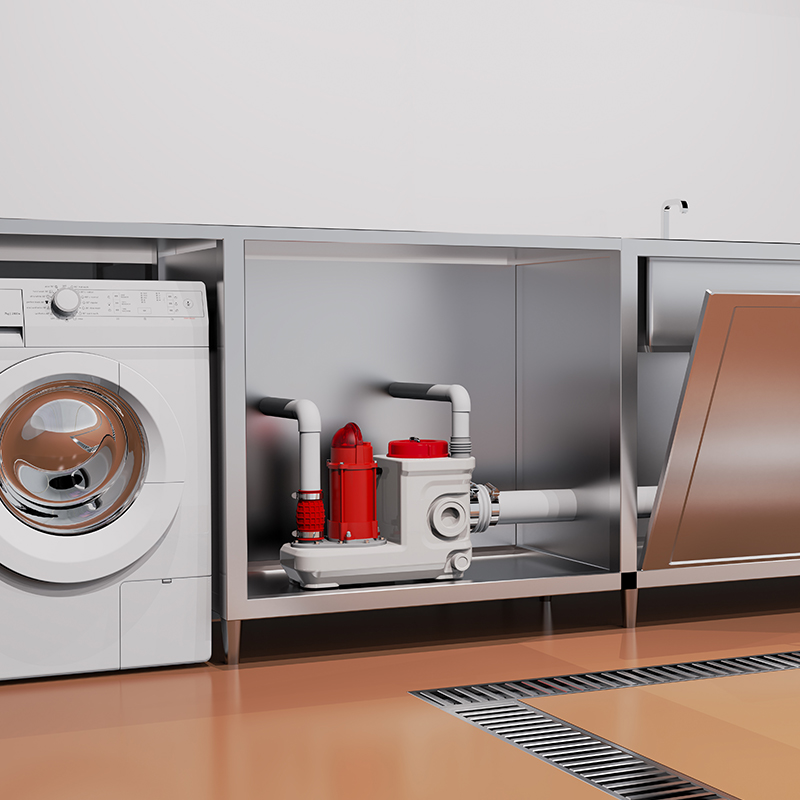

The Hi-Station 750 model is small in size and can also reach a lift of 13 meters, but it can have a better installation position, achieving a more beautiful effect, and is convenient for maintenance.

1. Heavy duty deep groove ball bearings, with both sides covered and lubricated with grease. Under rated operating conditions and maximum radial and axial loads, continuously operated bearings must have a bearing life of at least 25000 hours. It must be an excellent brand product such as NSK.
2. It is a dual group mechanical shaft seal system, with the shaft seal folding surface made of silicon carbide and the metal part made of 304 stainless steel. There is an independent large volume oil storage chamber between the mechanical shaft seals to lubricate and cool the mechanical shaft seals.
3. An overload protector (Auto cut) is installed in the motor, which automatically cuts off the power supply when the motor has abnormal temperature rise or excessive current, preventing the motor from burning out, and has an automatic reset function.
4. The pipeline connection is convenient and fast.

Hi-Station 750 Data Sheet

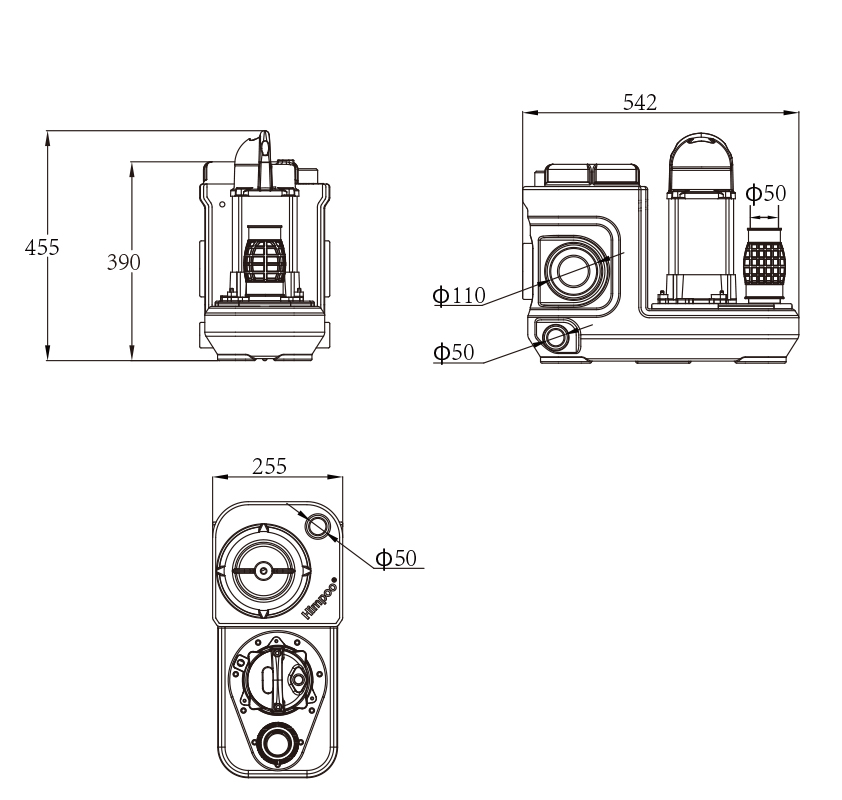

Dimensions (Height x Width x Depth)

451×542×255


Technical features of Hi-Station 750

Water inlet:                                     De110mm*3,De50mm*5

Outlet:                                            De50mm

Liquid Temperature:：                    45℃

Max Liquid temperature:                65℃/10min

Environmental temperature:           45℃

Insulation class:                               F-class

Maximum Particulate Matter:         35mm

Protection level:                              IP68

Volume of water tank:                     20L

Material of header tank:                  HDPE

Switch system：                               Air switch

Dimensions:                                     255*542*455mm

Cable length:                                   5m

HP value:                                          5-8

Voltage:                                            220~240V/50Hz

Power:                                              P1:1.1KW P2:0.75KW

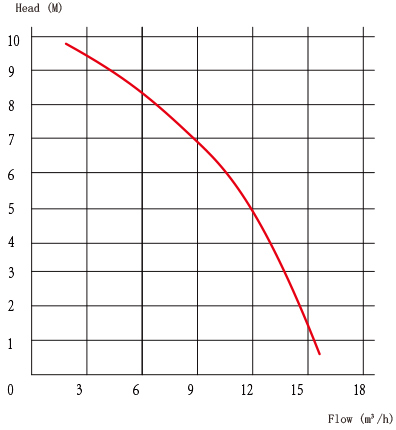

Flow rate:                                         Qmax 15m³/h

Head:                                                Hmax 10m

Rotating speed:                                2800 r/min

Current:                                            5.5A

Take-off water level:                         20cm

Weight:                                            NW:25KG
